Display / video : 4 x VGA - 15 pin HD D-Sub (HD-15) ¦ Keyboard / mouse : 4 x 4 pin USB Type A ¦ Display / video : 1 x VGA - 15 pin HD D-Sub (HD-15) ¦ Keyboard : 1 x 4 pin USB Type A ¦ Mouse : 1 x 4 pin USB Type A
Miscellaneous
Width
6.4 in
Depth
2.4 in
Height
7.9 in
Weight
1.5 lbs
Cables Included
4 x keyboard / mouse / video cable - 4 ft ¦ 1 x remote control cable - 6 ft
Compliant Standards
DDC-2B, RoHS
Manufacturer Warranty
Service & Support
3 years warranty
Service & Support Details
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
122 °F
Humidity Range Operating
0 - 80%
Main Features
IOGEAR's new GCS24U 4-Port USB Cable KVM allows users to share a VGA monitor, a USB mouse, and a USB keyboard between four computers. Users can switch between computers using a manual switch located on a wired remote control that can be placed conveniently on your desk. It offers an out-of-box / entirely plug-in-play solution with no additional cables or software installation needed. It supports multiple operating systems including Windows, Sun, and Mac. It is also powered through the USB bus and thus does not require a power supply to run. It is the ideal KVM for those who want a competitively priced, entry level KVM that will allow them to multitask with four computers at their disposal.
Features
One USB keyboard, USB mouse, and VGA monitor control four computers
Max resolution: 2048 x 1536, DDC2B
Plug-n-Play monitor support
4' long molded-in cables to simplify setup
Compact design features two attached KVM (USB and VGA) cables
Compatible with PC, MAC and SUN operating platforms
Supports Windows 2000 or higher, Mac OS 9.0 or higher, Sun Solaris 9 or higher
No software drivers required – simply connect the cables to the computers
Computer selection via 6 ft remote control cable that can be placed on your desk for easy reach
Full Mac keyboard support
Supports programmable mice
No power adapter required

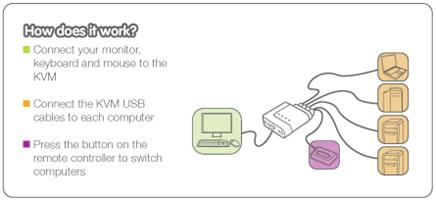

Function Diagram
Requirements
Computers with a USB and VGA (HDDB15) connections
Windows ME, 2000, XP, Vista
Mac OS 9.0 or greater
Sun Solaris work station
Linux, UNIX and other USB supported systems1
1Additional drivers and support may be needed
Specifications
Function
GCS24U
Housing
Case
Plastic
Console Connectors
Monitor
1 x HDB-15 Female
Keyboard
1 x Type-A Female
Mouse
1 x Type-A Female
CPU Connectors
Monitor
4 x HDB-15 Male
Keyboard & Mouse
4 x Type-A Male
Switches
Port Selection
Push Button
Video Resolution
2048 x 1536, DDC2B
Cable Length
4ft
Cable Type
Bonded with KVM
Environment
Operation Temperature
0C~50C
Storage Temperature
-20C~60C
Humidity
0~80% RH, NC
POP Information
10" Peg Hook
3
6" Peg Hook
2
